Motion-Energy¶

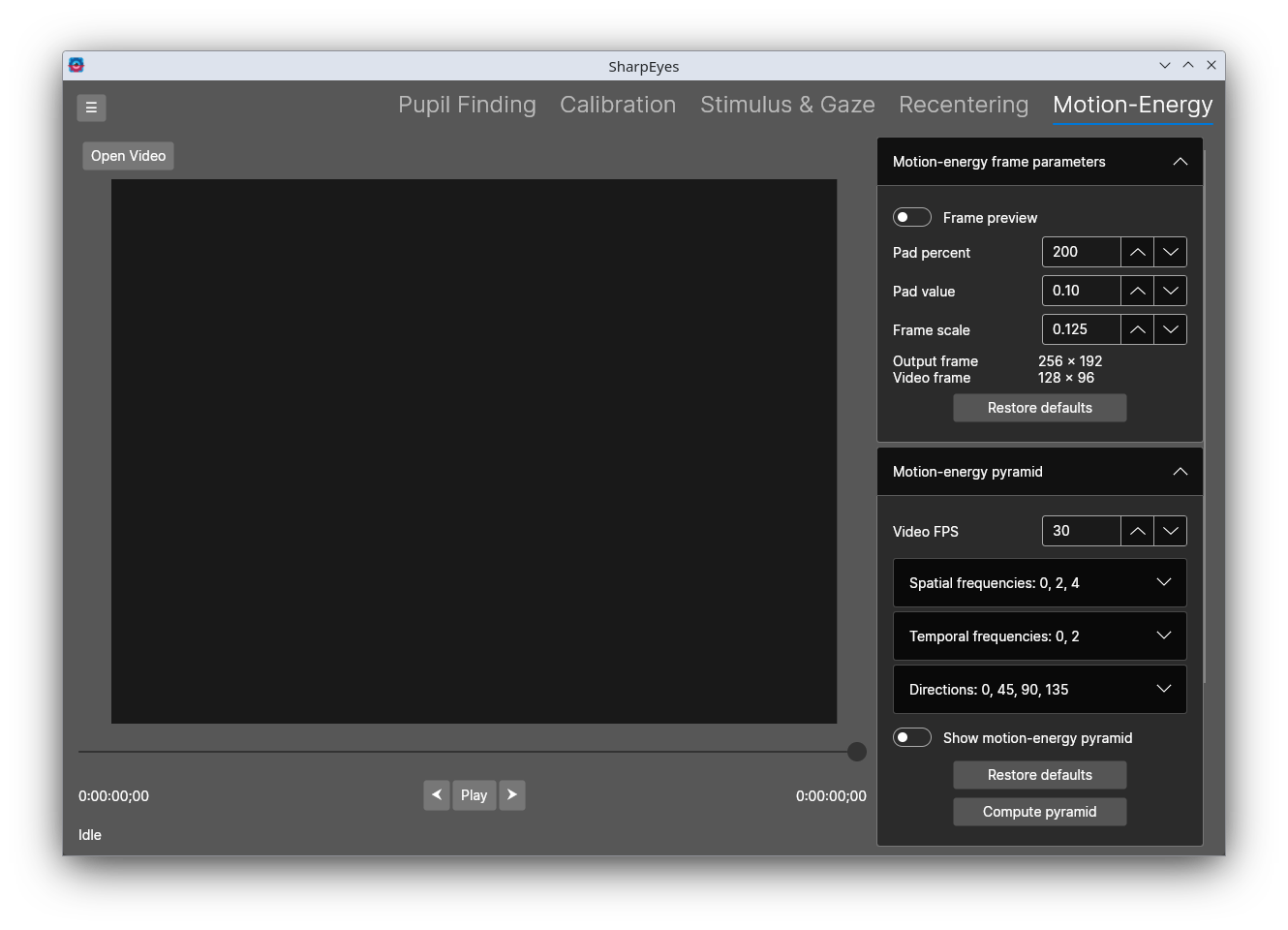

The Motion-Energy tab computes motion-energy features from a video using PyMoten. It can operate on recentered video sent from the Recentering tab, or on a raw video loaded directly. If you want to compute motion-energy for retinotopic videos, then they have to be sent over from the Recentering tab. The video preview overlays the motion-energy pyramid on the frames so you can visually verify the filter parameters before committing to a full computation.
Motion-energy frame parameters¶
These control how the input video frames are prepared before being passed to PyMoten.
By default the video is shown as a preview by sliding the original video around on the drawing canvas. Toggle the "preview" button on to preview the actual pixel values that the motion-energy code will see.
| Control | Description |
|---|---|
| Pad percent | Amount of padding added around each frame as a percentage of the frame size. Must be at least 100 (i.e. the padded frame is at least the original size). Recentered/retinotopic videos must be padded, but a raw video can do without padding. |
| Pad value | Pixel value (0.0–1.0) used to fill the padding area |
| Frame scale | Scale factor applied to each frame before processing. Lower values reduce computation time at the cost of spatial resolution. |
| Output frame | Displays the resulting output frame size given the current parameters |
| Video frame | Displays the original video frame size |
Click Restore defaults to reset these parameters.
Motion-energy pyramid¶
These control the filter bank that PyMoten uses to decompose the video into motion-energy features.
| Control | Description |
|---|---|
| Video FPS | Frame rate of the input video, used to convert temporal frequencies from cycles/second to cycles/frame. This is read from the video but can be overridden |
| Spatial frequencies | The spatial frequencies (cycles/image) to include in the pyramid. Select multiple; use + and − to add or remove values. |
| Temporal frequencies | The temporal frequencies (cycles/second) to include in the pyramid. Select multiple; use + and − to add or remove values. |
| Directions | The motion directions (degrees) to include in the pyramid. Select multiple; use + and − to add or remove values. |
| Show motion-energy pyramid | When enabled, the pyramid filters are overlaid on the video preview as circles and arrows so you can verify coverage. |
Click Compute pyramid to compute and display the pyramid for the current frame. Click Restore defaults to reset the pyramid parameters to their defaults.
Compute backend¶
The Backend dropdown selects which compute backend PyMoten uses for the current run. The available options depend on what is installed in your Python environment:
| Backend | Description |
|---|---|
| numpy | CPU-based computation using NumPy. Always available. |
| torch (CPU) | PyTorch running on CPU. |
| torch (CUDA) | PyTorch using an NVIDIA GPU via CUDA. Shown only if a compatible GPU is detected. |
| torch (MPS) | PyTorch using Apple Silicon GPU via MPS. Shown only on macOS with MPS support. |
The preferred backend order is configured in Python Settings. After a compute run completes, any GPU memory used by the CUDA backend is released automatically.
Compute features¶
Once the frame parameters, pyramid, and backend are configured, click Compute features to run the full feature extraction over the video. Set Start frame to begin extraction from a specific frame rather than the beginning. While computing, the button changes to Cancel to interrupt the run.
After extraction completes, a save dialog prompts for the output path. Three files are saved, all sharing the same base name:
{name} motion energy.npy — the features array, shape [frames × filters]. Each row is one video frame; each column is one filter from the pyramid.
{name} info.txt — a human-readable record of all parameters used for the run, including:
- Stimulus video path, FPS, frame size, and duration
- Gaze file path
- Gaze info: eyetracking FPS, data start frame, gaze space dimensions
- Gaze filtering settings (median filter window, outlier removal thresholds), or "None" if filtering was disabled
- Motion-energy parameters: pad percent, pad value, frame scale, output and video frame sizes, video FPS, spatial/temporal frequencies, directions, and start frame
{name} motion-energy filters.csv — one row per filter in the pyramid, with columns: Y center, X center, Direction (degrees), Spatial Frequency, Spatial Envelope, Temporal Frequency, Temporal Envelope, Temporal width, Spatial phase offset. All spatial values are in pixels at the output frame size.
