Example Output

This page shows the output of a basic autoflatten run and explains how to interpret the results.

Running autoflatten

A minimal run with default parameters:

autoflatten /path/to/freesurfer/subjects/sub-01

The input argument is the path to a FreeSurfer subject directory. By default, output files are saved in the subject's surf/ directory.

Output Files

For each hemisphere, autoflatten generates the following files:

File	Description
`{hemi}.autoflatten.patch.3d`	Patch file with cuts and medial wall removed
`{hemi}.autoflatten.patch.png`	QC plot showing the projected cuts on the participant's surface
`{hemi}.autoflatten.projection.log`	Projection phase log
`{hemi}.autoflatten.flat.patch.3d`	Patch file with flattened surface
`{hemi}.autoflatten.flat.patch.png`	QC plot showing generated flatmap and final distance error
`{hemi}.autoflatten.flat.patch.3d.log`	Detailed flattening log with metrics

Projection Visualization

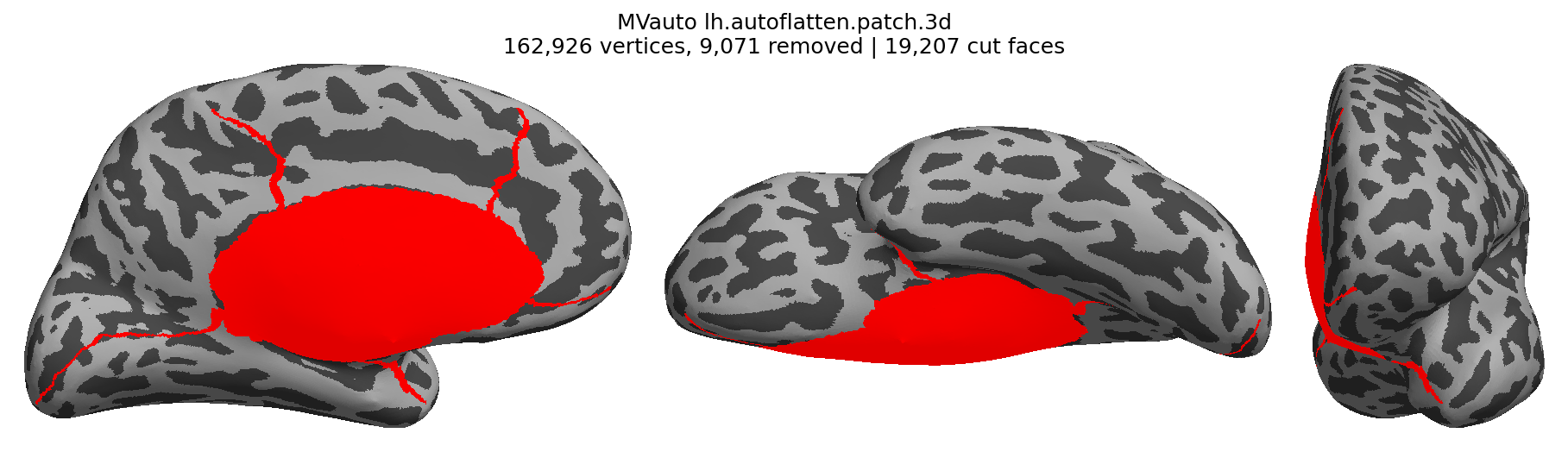

The projection plot ({hemi}.autoflatten.patch.png) shows the 3D surface with cuts highlighted in red from three views (medial, ventral, frontal):

Example projection

The title shows the number of vertices, removed vertices (cuts), and cut faces.

Flatmap Visualization

The flatmap plot ({hemi}.autoflatten.flat.patch.png) shows a three-panel figure:

Example flatmap

Left panel: Flatmap

Gray mesh shows the flattened cortical surface
Yellow/orange dots mark flipped triangles (ideally < 0.05% of faces)
Blue dots show boundary vertices

Center panel: Metric Distortion

Per-vertex distortion showing % error between 2D and 3D geodesic distances
Lower values (darker) = better distance preservation

Right panel: Distortion Distribution

Histogram with mean (black dashed) and median (gray dotted) lines

Title metrics: vertex/face count, mean % error, flipped count and percentage.

Two different error metrics

The title shows the mean % error computed using the same neighborhood structure as the flattening algorithm (7-ring with angular sampling of 12 vertices, by default). The histogram shows distortion computed with a simpler, faster 2-ring neighborhood for visualization purposes.

Log File Contents

The log file ({hemi}.autoflatten.flat.patch.3d.log) contains detailed optimization progress. Here's an annotated example:

Running pyflatten backend
  Input patch: .../surf/lh.autoflatten.patch.3d
  Base surface: .../surf/lh.fiducial
  Output: .../surf/lh.autoflatten.flat.patch.3d
  K-ring: 7, neighbors/ring: 12

Shows input/output files and k-ring parameters used for geodesic distance computation.

Mesh Statistics

Loading cortical surface patch...
Mesh: 153,855 vertices, 306,641 faces
Euler characteristic: 1, Boundary vertices: 1067
Original 3D patch surface area: 85792.87

Basic mesh information. Euler characteristic of 1 confirms a disk topology (required for flattening).

K-ring Distance Computation

Computing 7-ring geodesic distances with angular sampling (12/ring)...
Computing 7-ring neighbors by level...
Computing vertex normals...
Angular sampling (12 per ring)...
Average neighbors per vertex: 75.3 (max possible: 84)
Distance constraints: 11,583,235 edges, avg 75.3 neighbors/vertex

Shows the geodesic distance computation progress. These distances are used as constraints during optimization.

Optimization Progress

=====================================================================================
FREESURFER-STYLE OPTIMIZATION (Vectorized Quadratic Line Search)
=====================================================================================
Initial projection: 114607 flipped triangles
Initial energies: J_d=620597888.0000, J_a=207523.7344

The optimization starts with many flipped triangles from the initial 2D projection.

=====================================================================================
NEGATIVE AREA REMOVAL (Vectorized Quadratic Line Search, FreeSurfer v6.0.0 convergence)
=====================================================================================

--- Pass 1/5: l_nlarea=1.0, l_dist=1e-06, flipped=114607 (37.37%) ---
  J_d=620597888.0000, J_a=207523.734375, schedule=[1024, 256, 64, 16, 4, 1, 0]
   Iter  n_avg        J_d        J_a    relΔSSE      alpha  Flipped    %err
  ----------------------------------------------------------------------------------------
      1   1024 465559392.0000 40410.1289   0.00e+00   1.63e+04    71135  142.0%
      2   1024 417951104.0000 17910.5137   5.52e-01   4.21e+03    28550  132.3%
      ...

Multiple passes with increasing l_dist weight progressively reduce flipped triangles while preserving geodesic distances:

J_d: Distance energy (preserving geodesic distances)
J_a: Area energy (preventing flipped triangles)
n_avg: Gradient smoothing window size
relΔSSE: Relative change in energy (convergence criterion)
alpha: Step size from line search
Flipped: Number of flipped triangles
%err: Mean percentage distance error

Spring Smoothing

=====================================================================================
FINAL SPRING SMOOTHING (FreeSurfer-style)
=====================================================================================
  n_iterations=5, dt=0.5, max_step=1.0
  Before: 22 flipped, 14.69% distance error
  Iter 1: 8 flipped, 14.48% err
  ...
  After: 15 flipped, 14.47% distance error

Final Laplacian smoothing pass for visual quality.

Final Result

=====================================================================================
FINAL RESULT
=====================================================================================
Flipped triangles: 114607 -> 15
Mean % distance error: 14.47%
Total elapsed time: 11m 38.3s

Summary showing the reduction in flipped triangles and final distance error.
