Dashboard¶

The dashboard allows you to configure real-time visualizations of data.

Configuring the dashboard¶

To make a data element available for real-time visualization, you need to add a SendToDashboard preprocessing step to your pipeline. The kwargs must include:

name: the name of the data (used for display only)
plot_type: One of the following
- bar: a bar plot
- timeseries: a timeseries plot
- array_image: an image representation of a 2D array
- static_image: an image stored as a .png, .jpg, or other standard image format

Here is an example of preprocessing steps that add the z-displacement and image mosaic to the dashboard:

- name: send_motion_parameters_z
  class_name : realtimefmri.preprocess.SendToDashboard
  kwargs: { name: z_disp, plot_type: timeseries }
  input: [ z_displacement ]
- name: send_mosaic
  class_name: realtimefmri.preprocess.SendToDashboard
  kwargs: { name: mosaic, plot_type: array_image }
  input: [ volume_mosaic ]

Using the dashboard¶

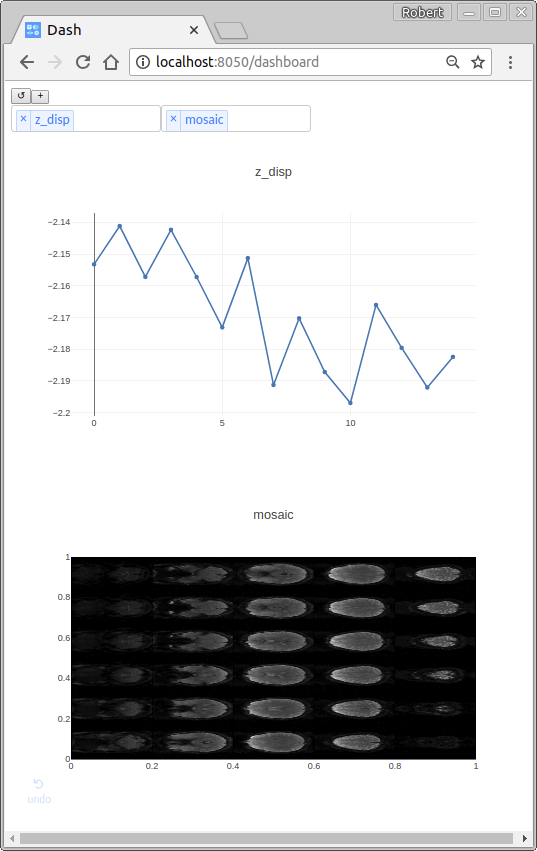

After starting the web interface, visit http://localhost:8050/dashboard. Press the “↺” button to refresh the list of available data elements, then press the “+” button to add a new figure. A multi-dropdown menu will appear that allows the selection of one or several data elements to display.
