Plot 3D Brain Views Headlessly (No Browser)

cortex.export.save_3d_views and cortex.export.plot_panels can render and save multiple 3D screenshots of brain data without any manual browser interaction by passing headless=True.

Under the hood this launches a headless Chromium browser via Playwright, which connects to the pycortex webviewer and renders the WebGL scene using software rasterisation. You can use these functions to display and save 3D views of brain data in scripts and notebooks.

Prerequisites

Install Playwright and download the bundled Chromium binary once:

pip install playwright
playwright install chromium

import os
import tempfile

import numpy as np
import matplotlib.pyplot as plt

import cortex
import cortex.export

np.random.seed(42)

volume = cortex.Volume.random(subject="S1", xfmname="fullhead")

# Choose which angles and surface states to render
# Each entry in ``list_angles`` is paired with the corresponding entry in
# ``list_surfaces``.  Both lists must have the same length.
list_angles = [
    "lateral_pivot",
    "medial_pivot",
    "left",
    "right",
]
list_surfaces = ["inflated"] * len(list_angles)

Render and save using plot_panels

Build a list of panels (one panel per angle/surface) and render them into a single figure with cortex.export.plot_panels. This uses the same headless renderer as cortex.export.save_3d_views.

panels: list[cortex.export.PanelParams] = []
n = len(list_angles)
for i, (angle, surface) in enumerate(zip(list_angles, list_surfaces)):
    panels.append(
        {
            "extent": (i / n, 0.0, 1.0 / n, 1.0),
            "view": cortex.export.PanelView(angle=angle, surface=surface),
        }
    )

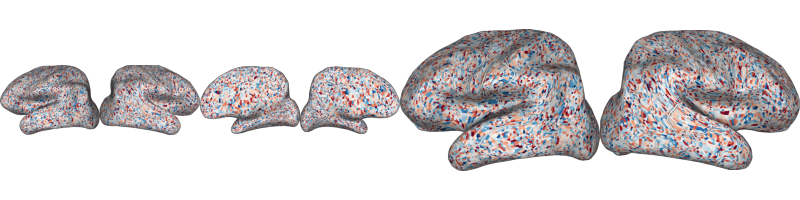

fig = cortex.export.plot_panels(
    volume,
    panels=panels,
    figsize=(2 * n, 2),
    windowsize=(1024 * 2, 768 * 2),
    viewer_params=dict(labels_visible=[], overlays_visible=["rois"]),
    headless=True,
)
plt.show()

Generating new ctm file...
wm
wm
inflated
inflated
Started server on port 39192
{'camera.azimuth': 270, 'camera.altitude': 90, 'camera.target': [0, 0, 0], 'surface.{subject}.unfold': 0.5, 'surface.{subject}.pivot': 0, 'surface.{subject}.shift': 0, 'surface.{subject}.specularity': 0, 'surface.{subject}.sampler': 'nearest', 'surface.{subject}.layers': 1}
{'camera.azimuth': 180, 'camera.altitude': 90, 'camera.target': [0, 0, 0], 'surface.{subject}.unfold': 0.5, 'surface.{subject}.pivot': 180, 'surface.{subject}.shift': 10, 'surface.{subject}.specularity': 0, 'surface.{subject}.sampler': 'nearest', 'surface.{subject}.layers': 1}
{'camera.azimuth': 0, 'camera.altitude': 90, 'camera.target': [0, 0, 0], 'surface.{subject}.unfold': 0.5, 'surface.{subject}.pivot': 180, 'surface.{subject}.shift': 10, 'surface.{subject}.specularity': 0, 'surface.{subject}.sampler': 'nearest', 'surface.{subject}.layers': 1}
{'camera.azimuth': 90, 'camera.altitude': 90, 'camera.target': [0, 0, 0], 'surface.{subject}.unfold': 0.5, 'surface.{subject}.pivot': 0, 'surface.{subject}.shift': 0, 'surface.{subject}.specularity': 0, 'surface.{subject}.sampler': 'nearest', 'surface.{subject}.layers': 1}
Stopping server

Save individual views to files

cortex.export.save_3d_views saves each angle as a separate PNG file.

# sphinx_gallery_multi_image_block = "single"

TARGET_WIDTH = 10  # inches — consistent width for uniform title sizing

base_name = os.path.join(tempfile.mkdtemp(), "fig")
fnames = cortex.export.save_3d_views(
    volume,
    base_name=base_name,
    list_angles=list_angles,
    list_surfaces=list_surfaces,
    viewer_params=dict(labels_visible=[], overlays_visible=["rois"]),
    headless=True,
)

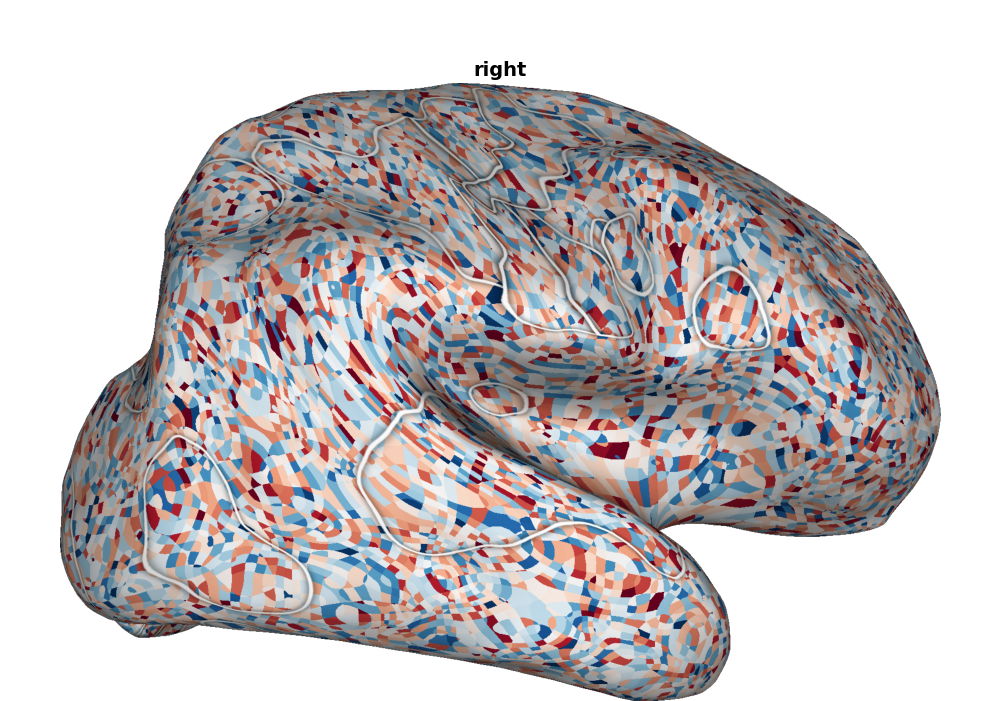

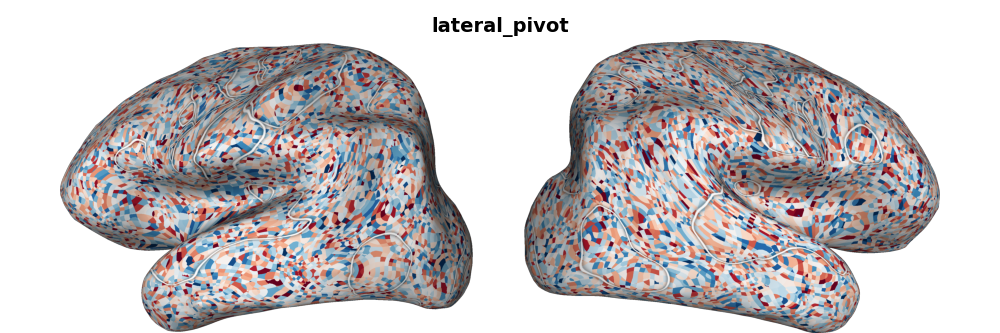

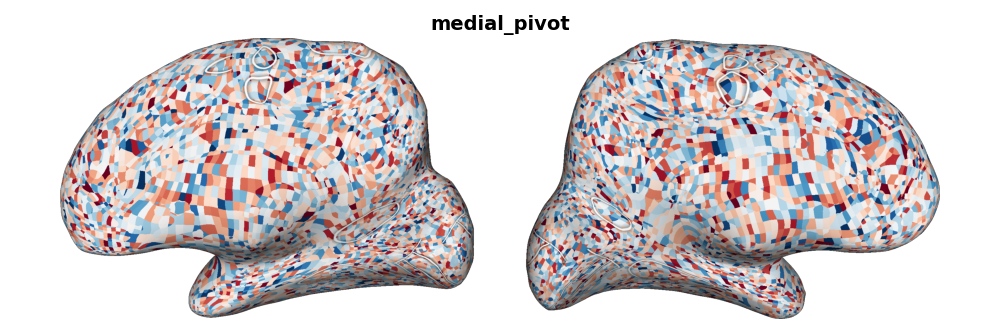

for fname, angle in zip(fnames, list_angles):
    img = plt.imread(fname)
    aspect = img.shape[0] / img.shape[1]
    fig, ax = plt.subplots(figsize=(TARGET_WIDTH, TARGET_WIDTH * aspect))
    ax.imshow(img)
    ax.axis("off")
    ax.set_title(angle, fontsize=14, fontweight="bold")
    fig.subplots_adjust(left=0, right=1, top=0.88, bottom=0)
    plt.show()

•
•
•
•

Started server on port 6691
{'camera.azimuth': 180, 'camera.altitude': 90, 'camera.target': [0, 0, 0], 'surface.{subject}.unfold': 0.5, 'surface.{subject}.pivot': 180, 'surface.{subject}.shift': 10, 'surface.{subject}.specularity': 0, 'surface.{subject}.sampler': 'nearest', 'surface.{subject}.layers': 1}
{'camera.azimuth': 0, 'camera.altitude': 90, 'camera.target': [0, 0, 0], 'surface.{subject}.unfold': 0.5, 'surface.{subject}.pivot': 180, 'surface.{subject}.shift': 10, 'surface.{subject}.specularity': 0, 'surface.{subject}.sampler': 'nearest', 'surface.{subject}.layers': 1}
waiting for camera.azimuth {} -> 0
waiting for camera.altitude {} -> 90
waiting for camera.target {} -> [0, 0, 0]
waiting for surface.S1.unfold {} -> 0.5
waiting for surface.S1.pivot {} -> 180
waiting for surface.S1.shift {} -> 10
waiting for surface.S1.specularity {} -> 0
waiting for surface.S1.sampler {} -> nearest
waiting for surface.S1.layers {} -> 1
{'camera.azimuth': 90, 'camera.altitude': 90, 'camera.target': [0, 0, 0], 'surface.{subject}.unfold': 0.5, 'surface.{subject}.pivot': 0, 'surface.{subject}.shift': 0, 'surface.{subject}.specularity': 0, 'surface.{subject}.sampler': 'nearest', 'surface.{subject}.layers': 1}
waiting for camera.azimuth {} -> 90
waiting for camera.altitude {} -> 90
waiting for camera.target {} -> [0, 0, 0]
waiting for surface.S1.unfold {} -> 0.5
waiting for surface.S1.pivot {} -> 0
waiting for surface.S1.shift {} -> 0
waiting for surface.S1.specularity {} -> 0
waiting for surface.S1.sampler {} -> nearest
waiting for surface.S1.layers {} -> 1
{'camera.azimuth': 270, 'camera.altitude': 90, 'camera.target': [0, 0, 0], 'surface.{subject}.unfold': 0.5, 'surface.{subject}.pivot': 0, 'surface.{subject}.shift': 0, 'surface.{subject}.specularity': 0, 'surface.{subject}.sampler': 'nearest', 'surface.{subject}.layers': 1}
waiting for camera.azimuth {} -> 270
waiting for camera.altitude {} -> 90
waiting for camera.target {} -> [0, 0, 0]
waiting for surface.S1.unfold {} -> 0.5
waiting for surface.S1.pivot {} -> 0
waiting for surface.S1.shift {} -> 0
waiting for surface.S1.specularity {} -> 0
waiting for surface.S1.sampler {} -> nearest
waiting for surface.S1.layers {} -> 1
Stopping server

Predefined panel layouts

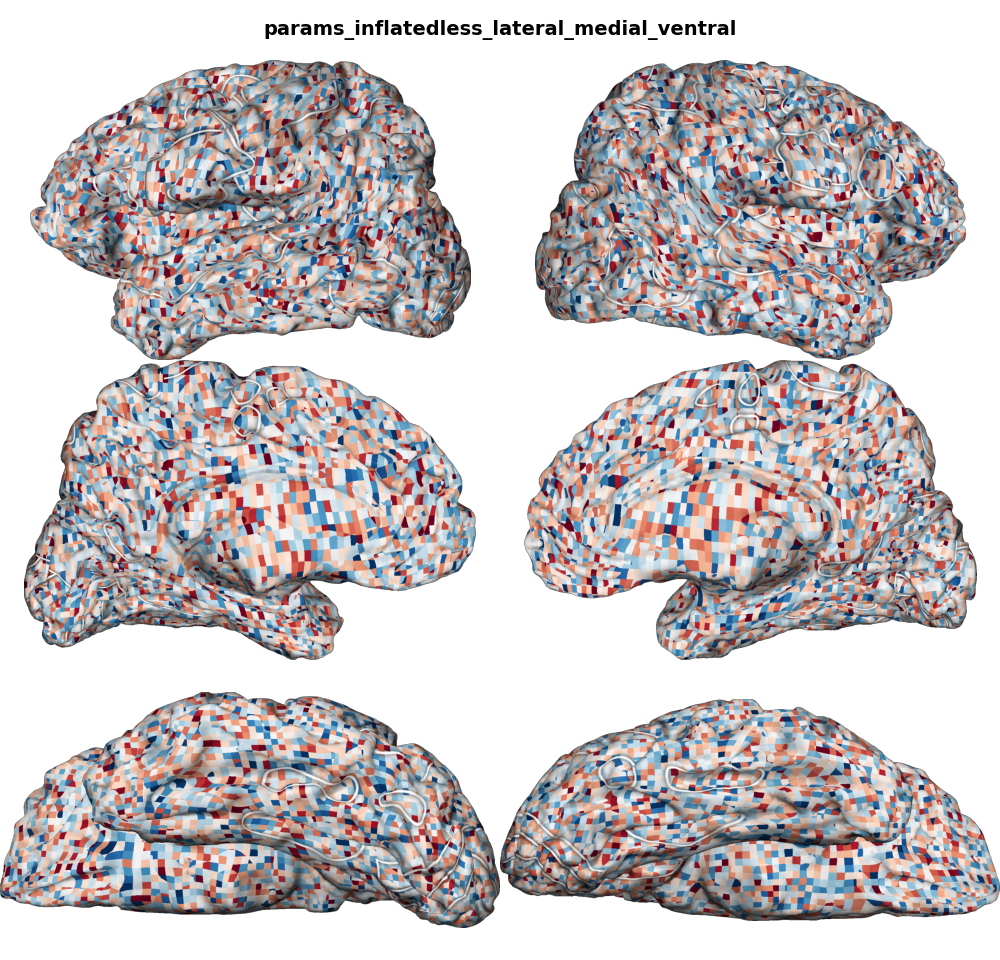

cortex.export ships with several ready-made panel configurations. Every public name matching params_* is a dict that can be passed directly to cortex.export.plot_panels. The loop below discovers them automatically, so this gallery stays up-to-date when new presets are added.

# sphinx_gallery_multi_image_block = "single"

predefined = {
    name: getattr(cortex.export, name)
    for name in sorted(dir(cortex.export))
    if name.startswith("params_")
}

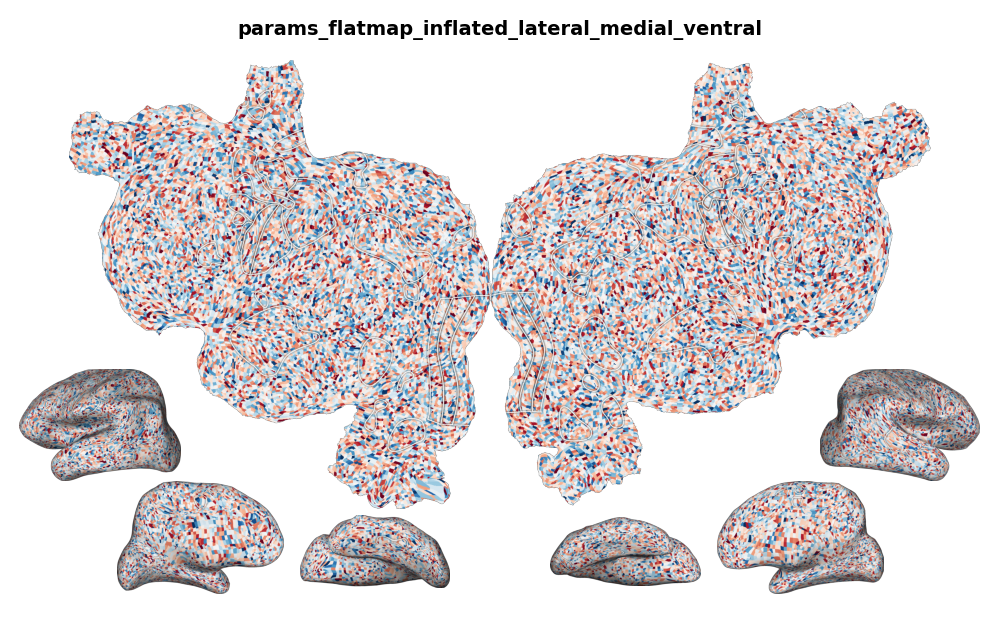

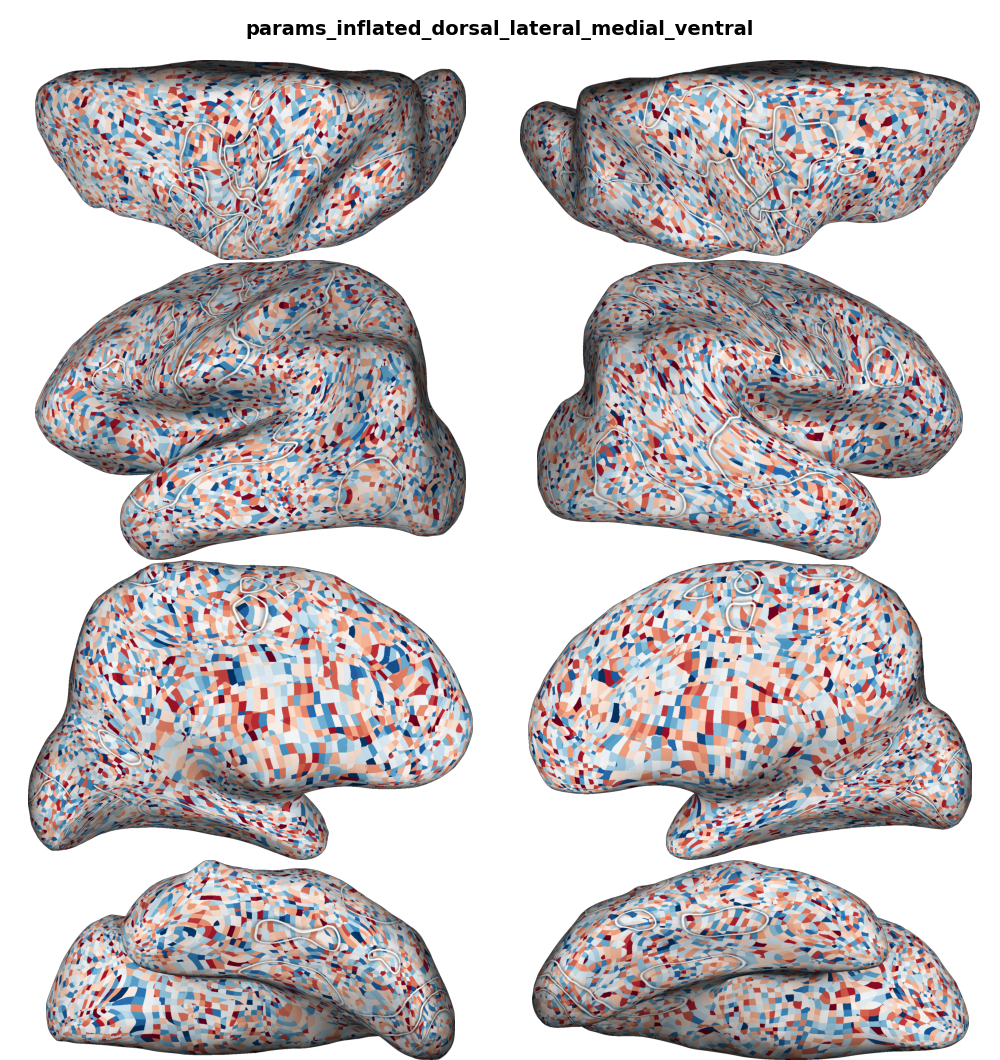

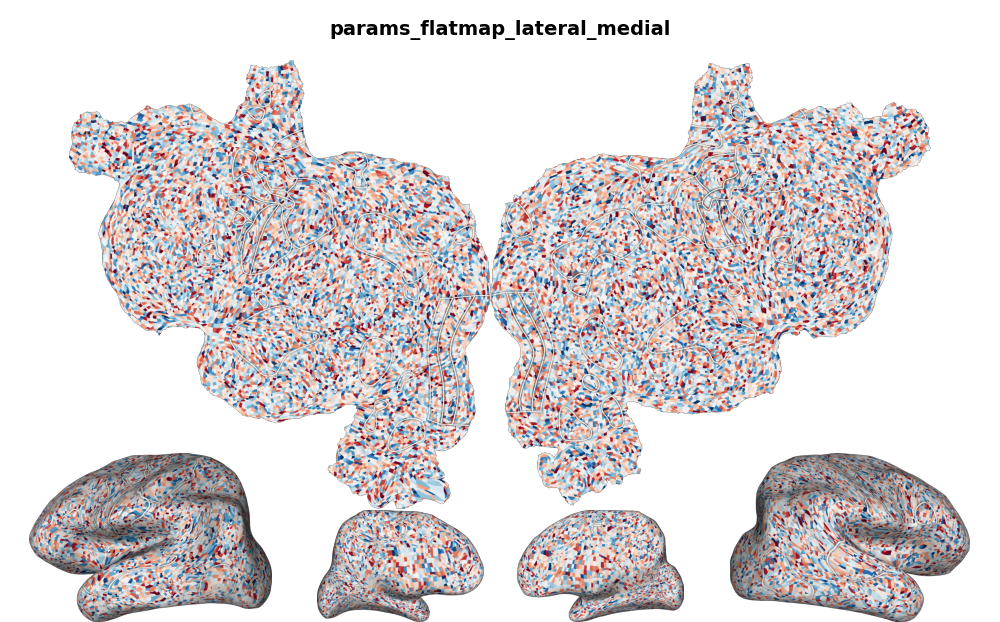

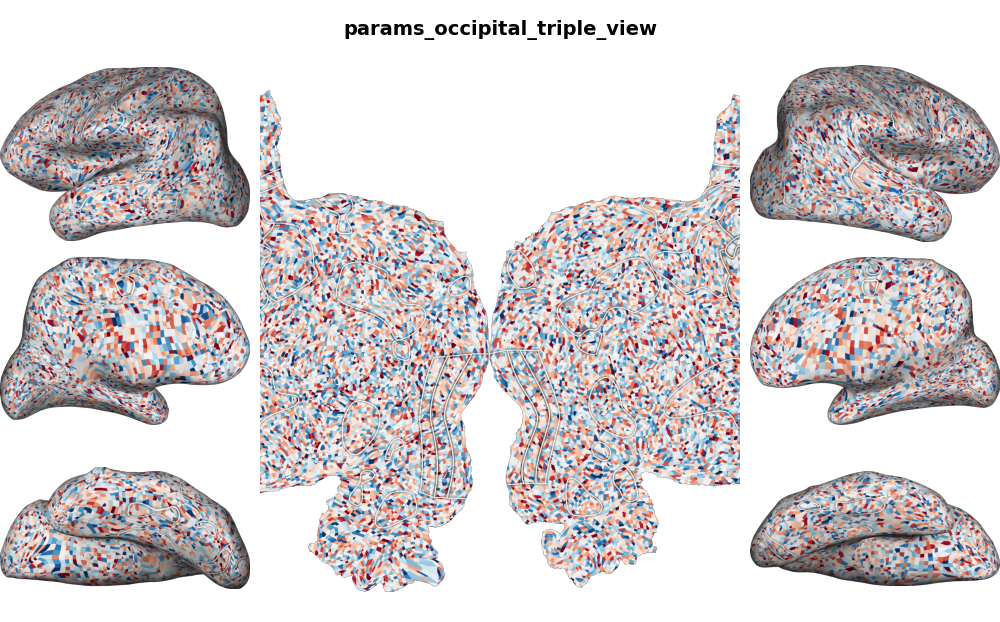

for name, params in predefined.items():
